Description
Specifications:
| Supported CPU | Socket 1155 Intel Pentium/Celeron Series Processors/ i7 / i5 / i3 series CPU | |
| Chipset | Intel H61/H67 Chipset | |
| Memory Supported | 2nos DDR3 Dual channel RAM slots Memory up to 16GB Supports dual channel DDR3 1066/1333/1600MHz memory | |
| BIOS | AMI BIOS | |

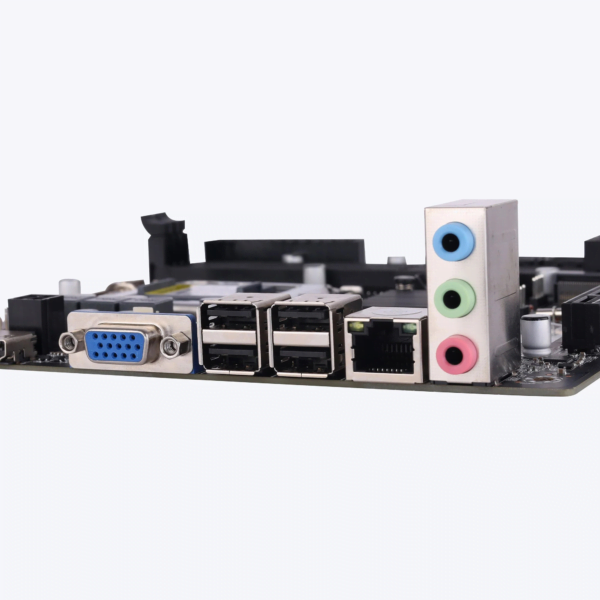

| I/O Interface | 1 x HD port, 1 x VGA Port, 6 x USB 2.0 Port, 1 x RJ45 Port, 1 x 3-in-1 Audio | |

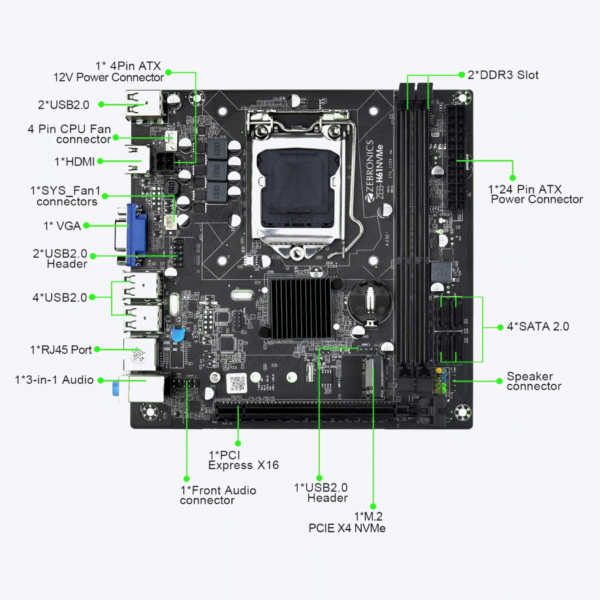

| Onboard Interface | 1 x 24 pin ATX Power Connector, 1 x 4 Pin ATX 12V Power Connector, 1 x Front Audio Connector, 1 x Front Panel Connector, 1 x Speaker Connector, 2 x Fan Connectors, 4 x SATA II Ports, 1 x USB 2.0 Header, 1 x 2pin CMOS Header, 1 x Debug Card Header, 1 x M.2 Slot | |
| Integrated Sound | Stereo Audio | |
| Integrated LAN | Supports Realtek 8106E 10/100 Mbps | |
| Expansion Slot | 1 x PCI Express 3.0 x16 size slot | |
| Form Factor | Micro-ATX | |
| Country of Origin | People’s Republic of China | |

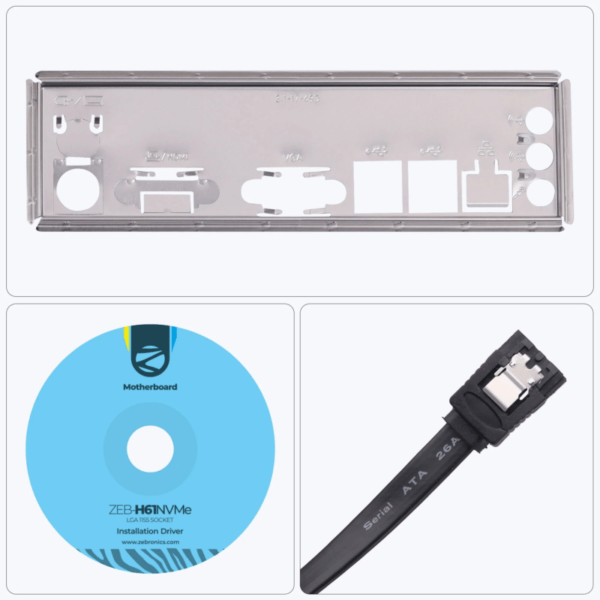

| Package contents | ||
| Motherboard | 1 U | |
| SATA Cable | 1 U | |
| I/O Backplate | 1 U | |
| Driver Disc | 1 U | |
| User Manual | 1 U |
